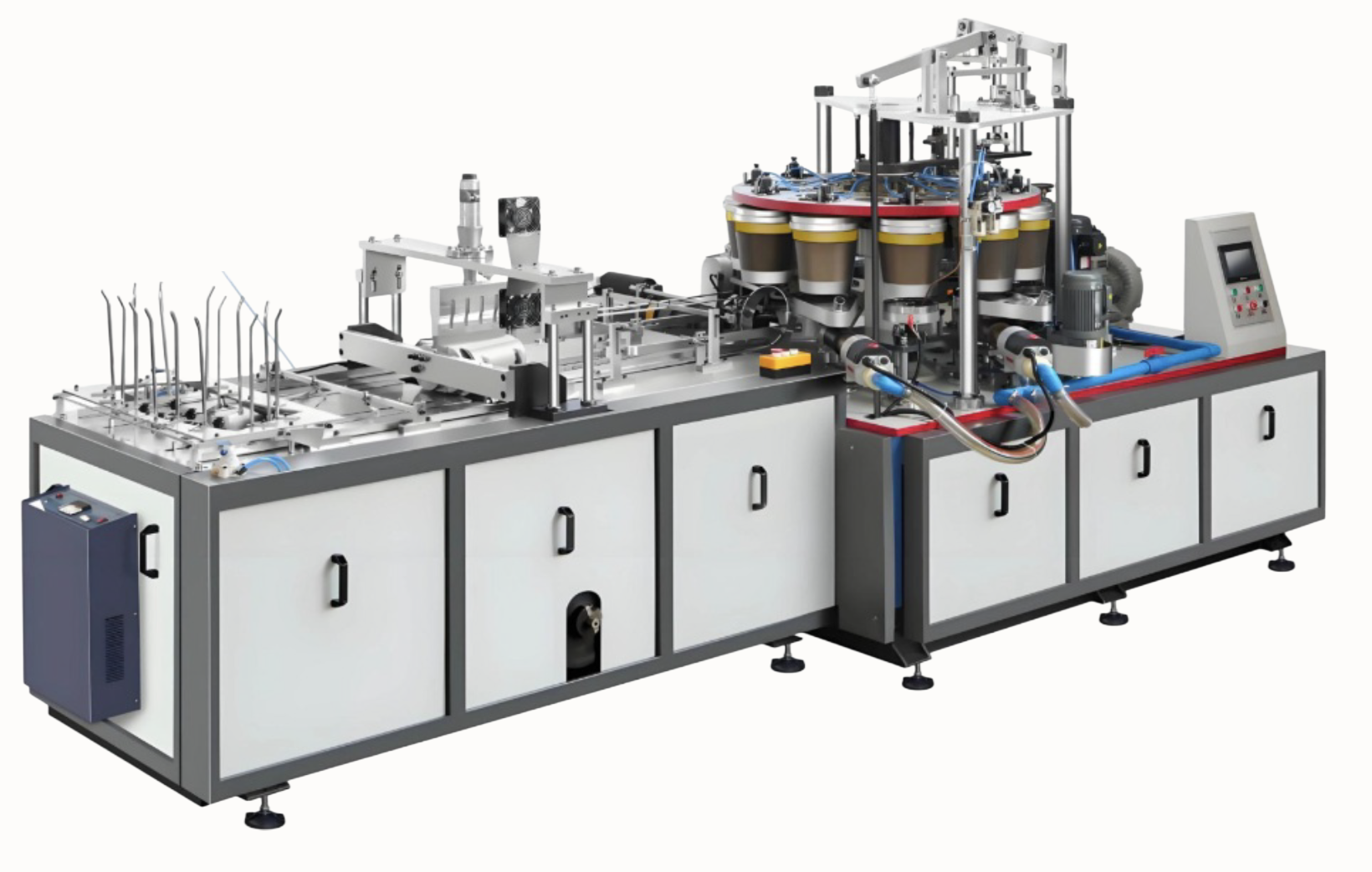

The CP-B700 produces paper tubs in compliance with international standards. It is suited to popcorn tubs and other large paper containers, with stable operation and strong production capacity. The maximum height of a finished container is 200 mm.
Cup capacity:
30–190 oz (1000–5000 ml)
Mold dimension T:
120–220 mm
Mold dimension B:
90–180 mm
Mold dimension H:
100–200 mm
Air supply:
1 MPa · 1 m³/min
Dimensions:
4600 × 2100 × 1700 mm
Total weight:
3,300 kg
Voltage:
220 / 380 V
Total power:
12 kW
Production capacity:
25–35 pcs/min
Paper specification:
150–500 gsm · single/double PE
Options:
Exchangeable molds and customization available
